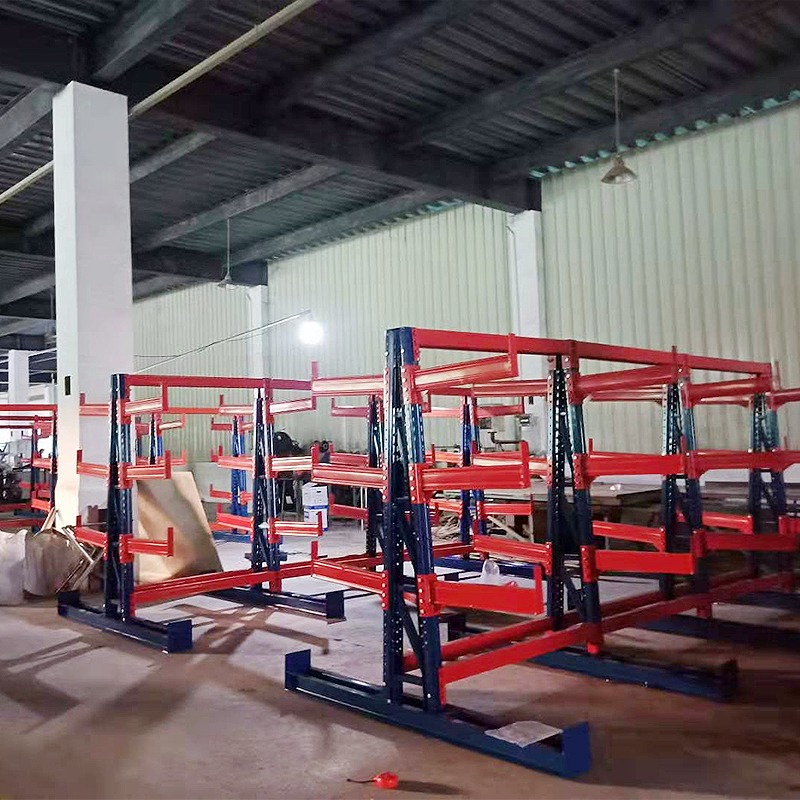

Cantilever racks(also referred to as lumber racks or pipe rack) are heavy duty storage shelving that is specifically designed for storing long and bulky items or materials such as lumber, plywood, PVC, steel pipe and metal or bar stock pipes, and more.For this reason, cantilever storage rack is the preferred solution for storing heavy duty items such as furniture, boats, steel bar stock, pvc pipe, iron pipe and a wide array of long, bulky and/or heavy items.
In all, cantilever racks are used by a wide variety of industries that recognize it as a great storage solution for their particular business or product line.
If you need, The shelf can add extra layer.(Standard is 2 layers)
Model | Capacity/KG | Size( L*W*H )mm | Layer | Remark |
JS-H01 | 1000KG | 2300*1000*2550 | 2 | Upright:2550*1000*90*70*1.5mm Beam:2300*100*45*1.2mm |
JS-H02 | 1500KG | 2300*1000*2550 | 2 | Upright:2550*1000*90*70*1.5mm Beam:2300*100*45*1.5mm |
JS-H03 | 2000KG | 2300*1000*2550 | 2 | Upright:2550*1000*90*70*1.8mm Beam:2300*120*45*1.5mm |
JS-H04 | 300KG | 2300*1000*2550 | 2 | Upright:2550*1000*90*70*2.0mm Beam:2300*140*45*1.5mm |
JS-H05 | 4000KG | 2300*1000*2550 | 2 | Upright:2550*1000*90*70*2.0mm Beam:2300*160*45*1.5mm |
